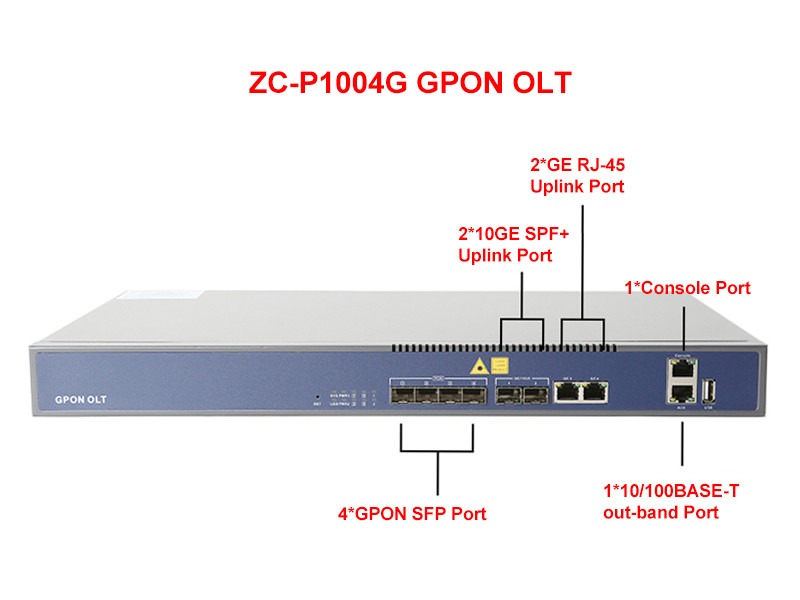

ZC-P1004G GPON OLT provides 4 GPON ports, 2 * GE+2 * GE (SFP)/10GE (SFP+) uplink ports. It has high reliability, high density and strong switching and routing capabilities. It is a new generation of service integrated network broadband multi-service access OLT equipment.
ZC-P1004G OLT integrates network security, supports data, voice and video, provides continuous forwarding, elegant restart and ring protection, improves work efficiency and ensures maximum operation time.
1U high 19-inch rack-mounted product, 4 PON ports, each port can support 128 ONUs at most, and the whole machine can support 512 ONUs at most. Small volume and high density OLT, easy to install, convenient and flexible, and easy to deploy high-performance broadband access network. It can be deployed in a compact room environment, and can also be used for "Triple-Play" VPN, IP Camera, enterprise LAN and ICT applications.
Features
* 1U 19 inch standard chassis GPON OLT with 4PON ports
* Compliant with ITU-T G984/G.988 standards
* Friendly EMS/Web/Telnet/CLI management
* Support other brands GPON and XPON ONUs
* Support 4096 VLANs, port VLAN and protocol VLAN;
* Support storm control based on port;
* Support port isolation,port rate limitation;
* Support static LACP;QoS based on port, VID, TOS and MAC address;
* Access control list;* Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
* Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
* Support power-off alarm function, easy for link problem detection;
* Support broadcasting storm resistance function;
* Support port isolation between different ports;
Software Feature
| Item | ZC-1004G |
| Chassis | Rack | 1U 19 Inch Standard Box |
| GE/10GE Uplink Port | QTY | 4 |
| RJ45(GE) | 2 |
| SFP(GE)/SFP+(10GE) | 2 |
| GPON Port | QTY | 4 |
| Physical Interface | SFP Slots |
| Connector Type | Class C+ |
| Max splitting ratio | 1:128 |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port, 1*USB(Type-C) |
| PON Port Specification (Class C+ module) | Transmission Distance | 20KM |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps |
| Wavelength | TX 1490nm, RX 1310nm |
| Connector | SC/UPC |
| Fiber Type | 9/125μm SMF |
| TX Power | +3~+7dBm |
| Rx Sensitivity | -30dBm |
| Saturation Optical Power | -12dBm |
| Dimension(L*W*H)(mm*mm*mm) | 442mm×212mm×44mm |
| Weight(kg) | 2.8 |
| Power Supply | 220VAC | AC:90~264V, 47/63Hz |
| DC Power Supply(DC:48V) | DC:16~48V |
| Double Power Module Hot Backup | √ |
| Max Power Consumption(W) | 35 |
| Operating Environment | Working Temperature | -0~+55℃ |
| Storage Temperature | -40~+85℃ |
| Relative Humidity | 5~90%(non-conditioning) |
